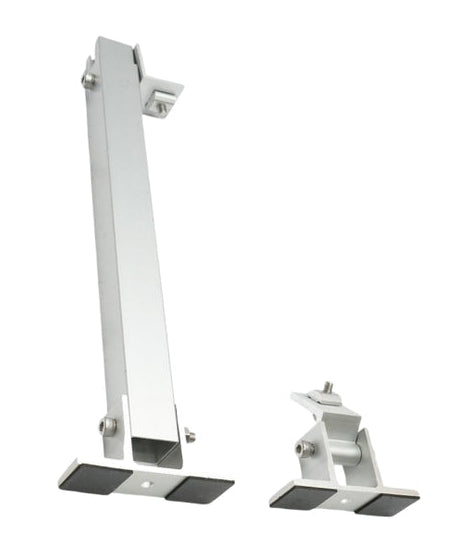

Adjustable construction (flat roof or other solutions) 15-30° made of aluminum

The set of 2 legs with an adjustable angle of 15–30 degrees, intended for mounting solar photovoltaic modules, System A 20 mm, represents an innovative and efficient solution for integrating solar systems on metal roofs.

The package contains:
• 1x small leg for the bottom of the construction
• 1x large leg for the top of the structure
• 4x self-drilling screws M6x80 mm for fixing

This system, made of aluminum alloy and stainless steel, offers durability and resistance to harsh weather conditions, ensuring a long service life without compromising on quality or safety.

The leg set has been designed to perfectly adapt to different roof configurations and allows precise angle adjustment between 15 and 35 degrees, optimizing the orientation of the solar panels to capture maximum solar energy. This aspect is essential for the overall efficiency of the photovoltaic system and guarantees maximum renewable energy production.

Technical details:

• Closed rear leg length: 370 mm
• Length of rear leg open: 680 mm
• Recommended distance between legs: 80–100 cm
• Wind load: 134 mph
• Snow load: 1.5 kN/m²
• Color: Gray
• Application: metal roof
• Material: aluminum alloy and stainless steel
