Aluminum mounting profile H, 3600 mm – 20 lei/meter - Photovoltaic solar panel support

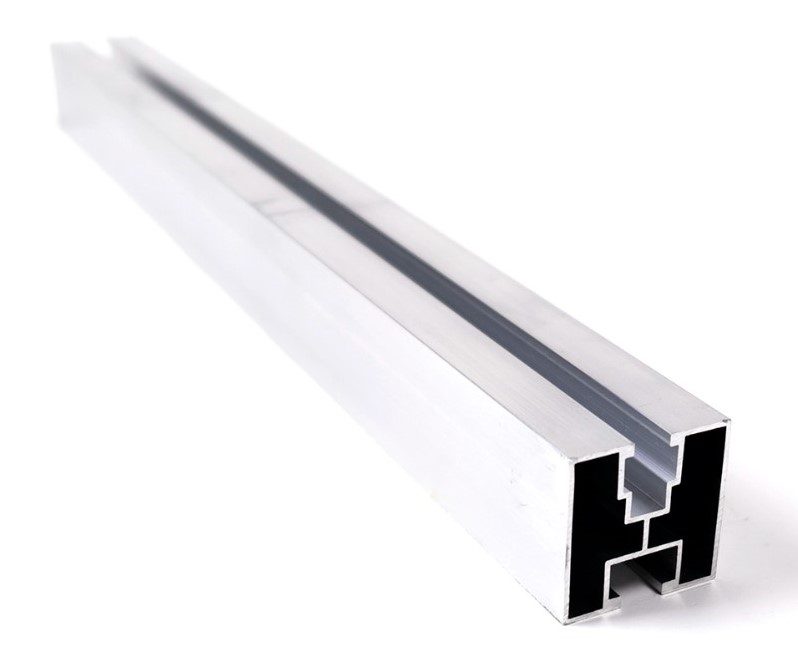

Aluminum mounting profile for photovoltaics – 40×40 mm, length 3600 mm
This high-quality aluminum mounting profile was developed specifically for mounting photovoltaic modules . With a length of 3600 mm and a natural aluminum surface, it offers a robust and durable solution for your solar installation.

• Material: Aluminum 6060 (high corrosion resistance)

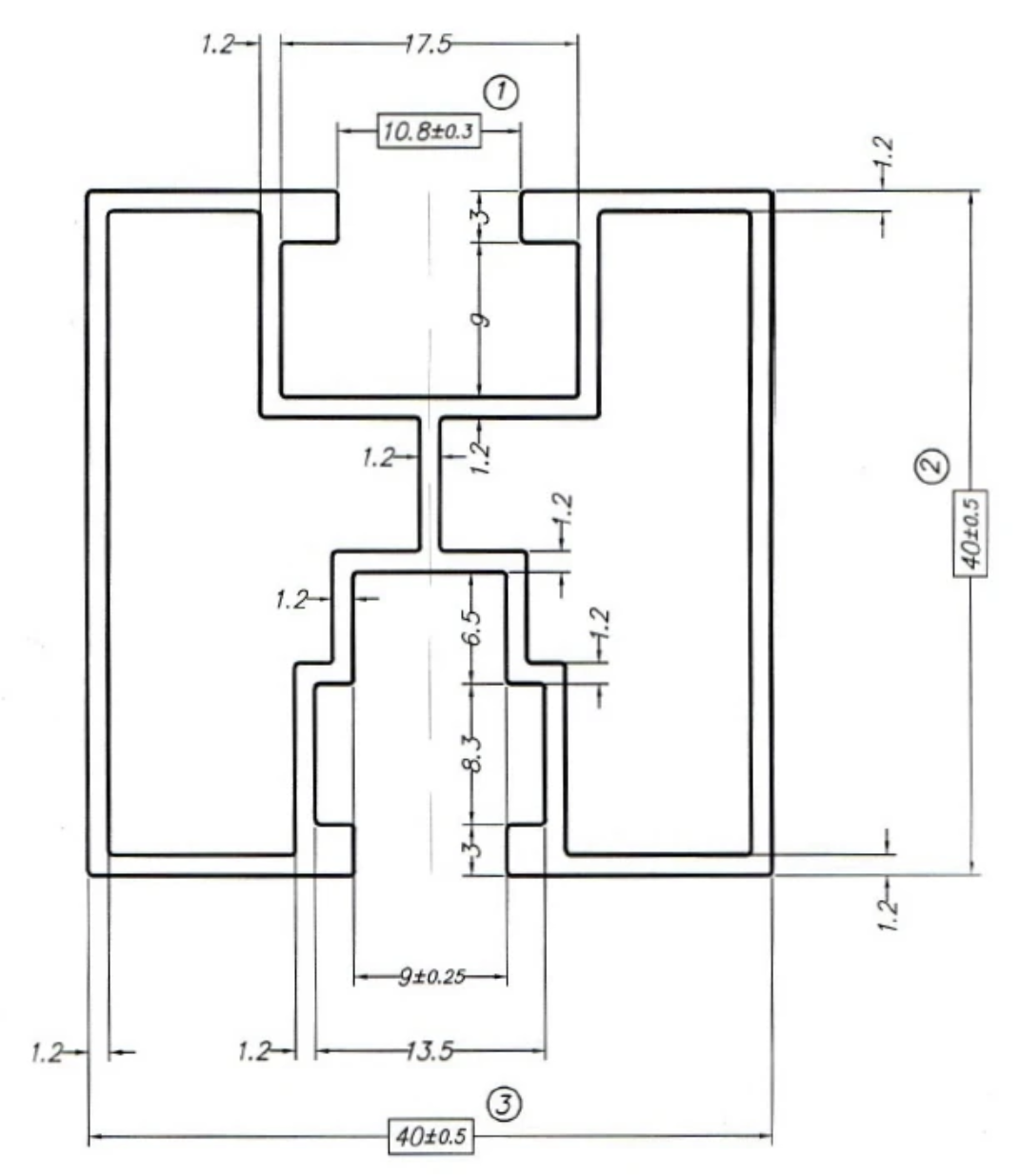

• Profile dimensions: 40×40 mm
• Length: 3600 mm
• Surface: Natural aluminum (silver gray)
• Top channel: M8 compatible
• Bottom channel: M10 compatible

The profile is ideal for mounting with intermediate and end clamps, which are fixed in the channel of the upper rail. The channel of the lower rail allows installation on adapters, roof hooks or triangular structures. Fixing is done with M10 hexagonal bolts and M10 flange nuts .

For larger projects, the profile can be extended with separately available connectors. The natural aluminum surface ensures a professional look and excellent durability.
