Adjustable hook for roof tiles 140 mm H17 reinforced - Stainless steel

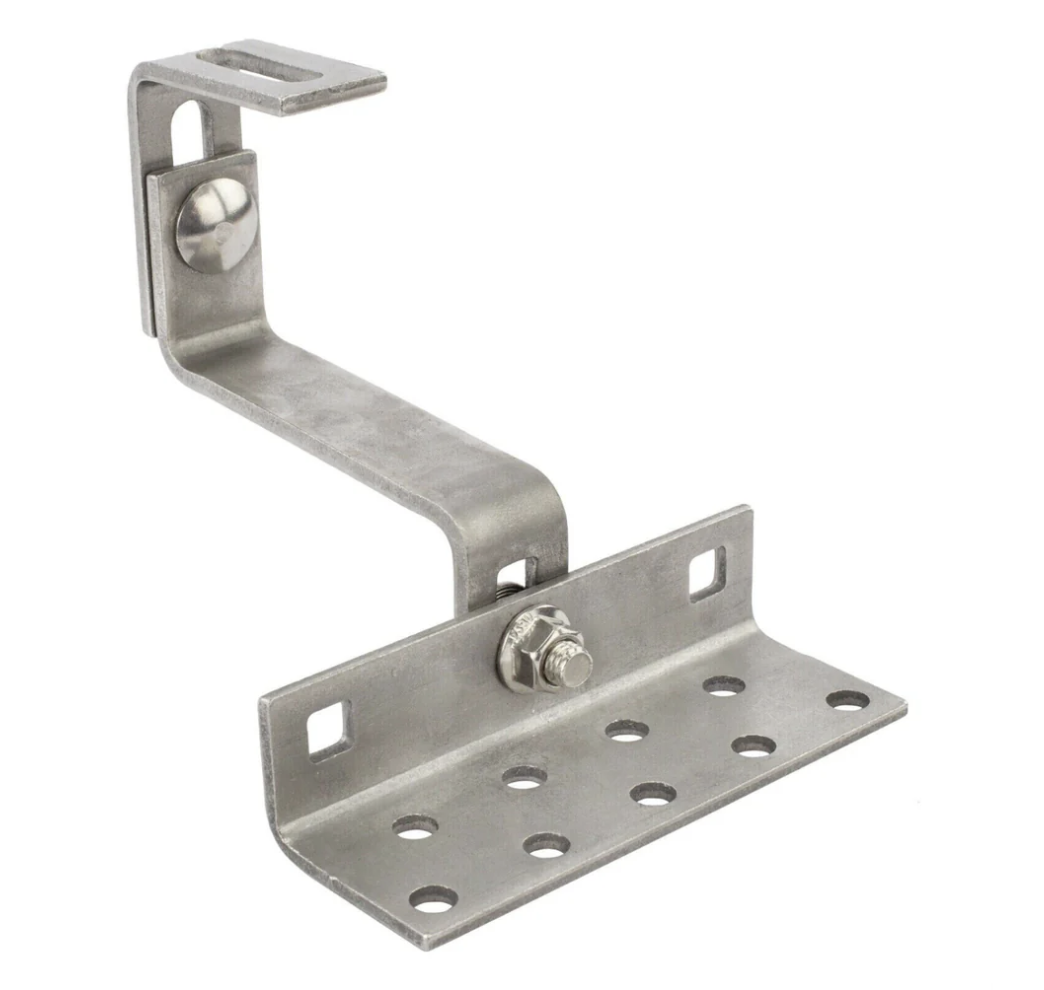

The reinforced Vario roof hook made of high-quality 1.4016 stainless steel offers maximum stability and load capacity for mounting photovoltaic profiles on roofs covered with ceramic tiles or concrete . This reinforced version is specially designed for demanding installations on tiled roofs.

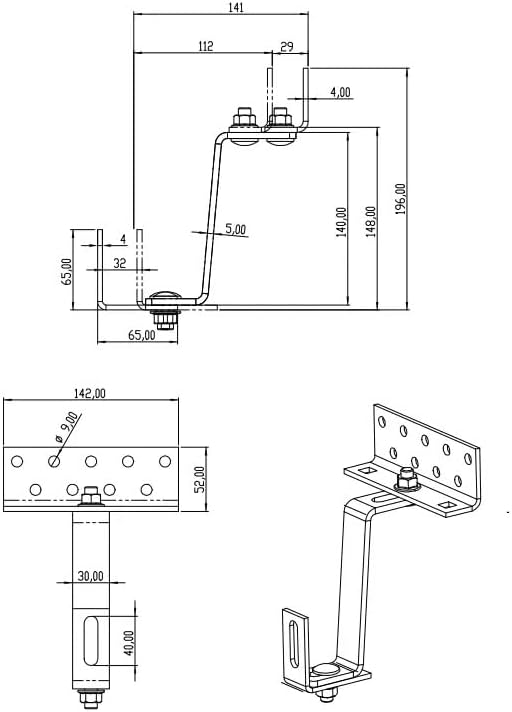

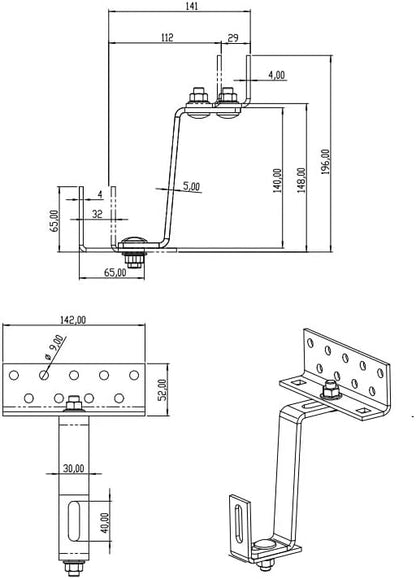

Technical data:

• Material: Stainless steel 1.4016, sandblasted, hardened
• Height: 105–140 mm
• Motherboard size: 140 x 56 x 5 mm
• Rod length: 150 x 5 mm
• Adjustment possibilities: Adjustable in 2 points
• Compatibility: Schletter Systems

Features:

• For tiled roofs: Ideal for ceramic or concrete tiled roofs.
• Increased load capacity: Reinforced construction with higher material density for additional stability.
• Corrosion resistance: Stainless steel 1.4016 guarantees a long service life, even under adverse conditions.
• Flexible and adjustable: Triple adjustable for precise fit.
• Pre-assembled: Quick and easy installation, even on complex roof structures.

The reinforced Vario roof hook for tiled roofs is the ideal choice for projects that require maximum load capacity and safety.
