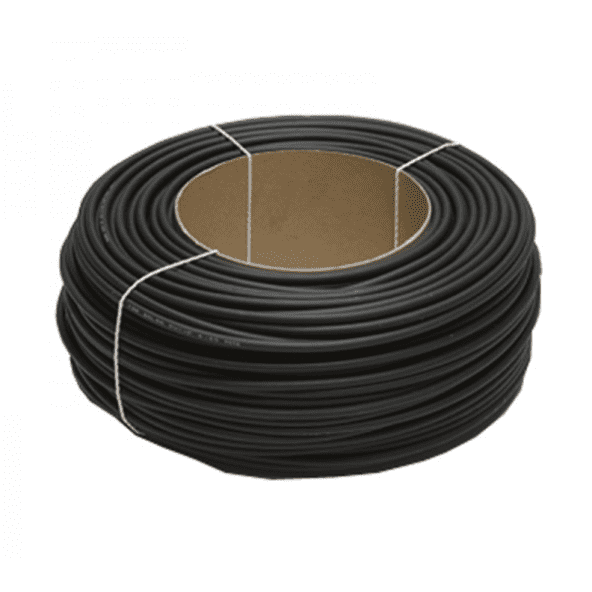

Black solar cable 6mm 500 meters

Black solar cable 6mm 500 meters

sol-a-2

2.250,00 RON
2.250,00 RON
Sale Sold out

excl. VAT.

Technical specifications:

  • Nominal voltage: 0.6/1kV AC
  • Operating voltage: 1.5kV DC (according to EN 50618)
  • Insulation resistance: 1000 MΩ/km
  • Maximum conductor temperature during cable operation: +90°C
  • Maximum conductor temperature during operation (long term): +120°C/20000h
  • Minimum ambient temperature for permanently installed conductors: -40°C
  • Minimum temperature for conductor installation: -25°C
  • Test voltage 50Hz: 4000V
  • Resistance to UV, ozone, atmospheric conditions: According to EN 50618
  • Flame retardant: According to DIN EN 60332-1
  • No aggressive fumes when burning
  • Minimum bending radius of permanent connection: 4 x Ø
  • Expected lifespan: 25 years
  • Diameter: 38cm x 22cm h
