Solarmetal

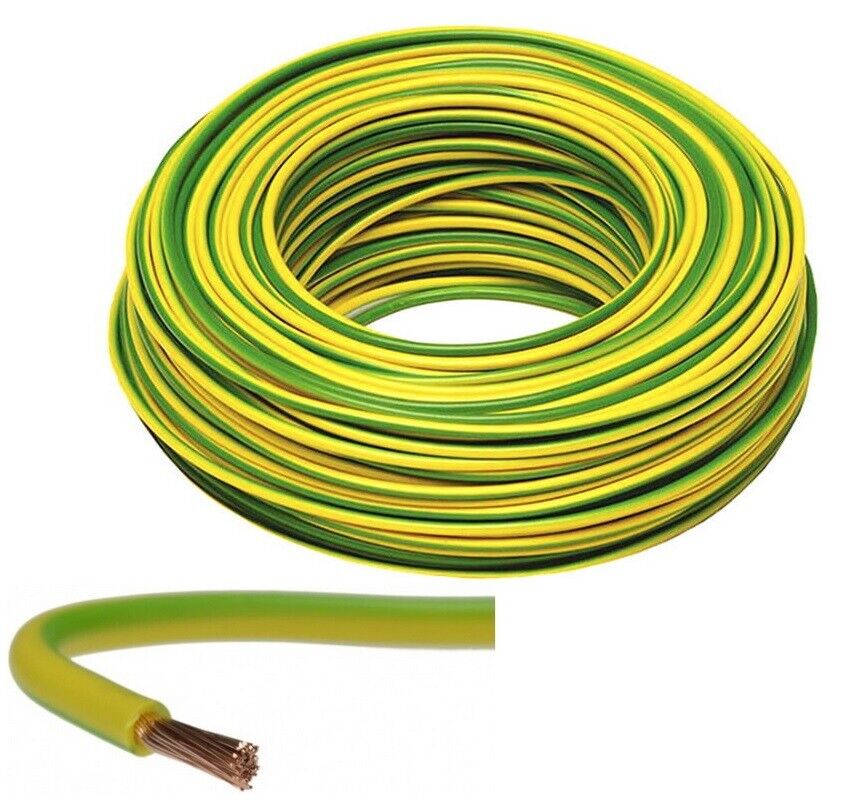

Yellow-green earthing cable 16mm 25 meters

Yellow-green earthing cable 16mm 25 meters

sol-a-3-1-1

375,00 RON
375,00 RON
Sale Sold out

excl. VAT.

Technical specifications:

  • ETIM 5 Classification: ETIM 5.0 Class-ID: EC000993, ETIM 5.0 Class-Description: Conductor
  • ETIM 6 Classification: ETIM 6.0 Class-ID: EC000993, ETIM 6.0 Class-Description: Conductor
  • Conductor structure: Fine wires according to VDE 0295 Class 5/ IEC 60228 Class 5
  • Minimum bending radius: According to EN 50565-1 AD ≤ 8mm: 4 x AD*/2 x AD**; 8 < AD ≤ 12mm: 5 x AD*/3 x AD**; AD > 12mm: 6 x AD*/4 x AD**
  • Nominal voltage U0/U: 450/750 V
  • Test voltage: 2500 V
  • Current capacity: VDE 0298 Part 4 EN 50565-1/ VDE 0298-565-1
  • Temperature range: Fixed installation: -40°C to +70°C
