Aluminum mounting profile 660cm - 19 RON/meter

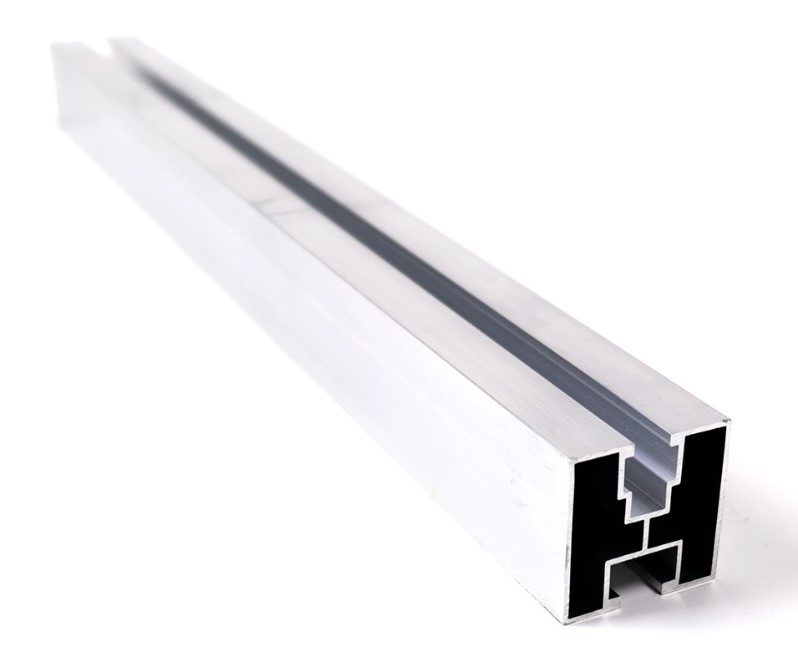

100 pcs (660 meters) Aluminum mounting profile for photovoltaics – 40×40 mm, length 6600 mm,
This high-quality aluminum mounting profile was developed specifically for mounting photovoltaic modules . With a length of 6600 mm , it is ideal for smaller photovoltaic systems and offers an excellent combination of stability and flexibility.

• Material: Aluminum 6060 (high corrosion resistance)

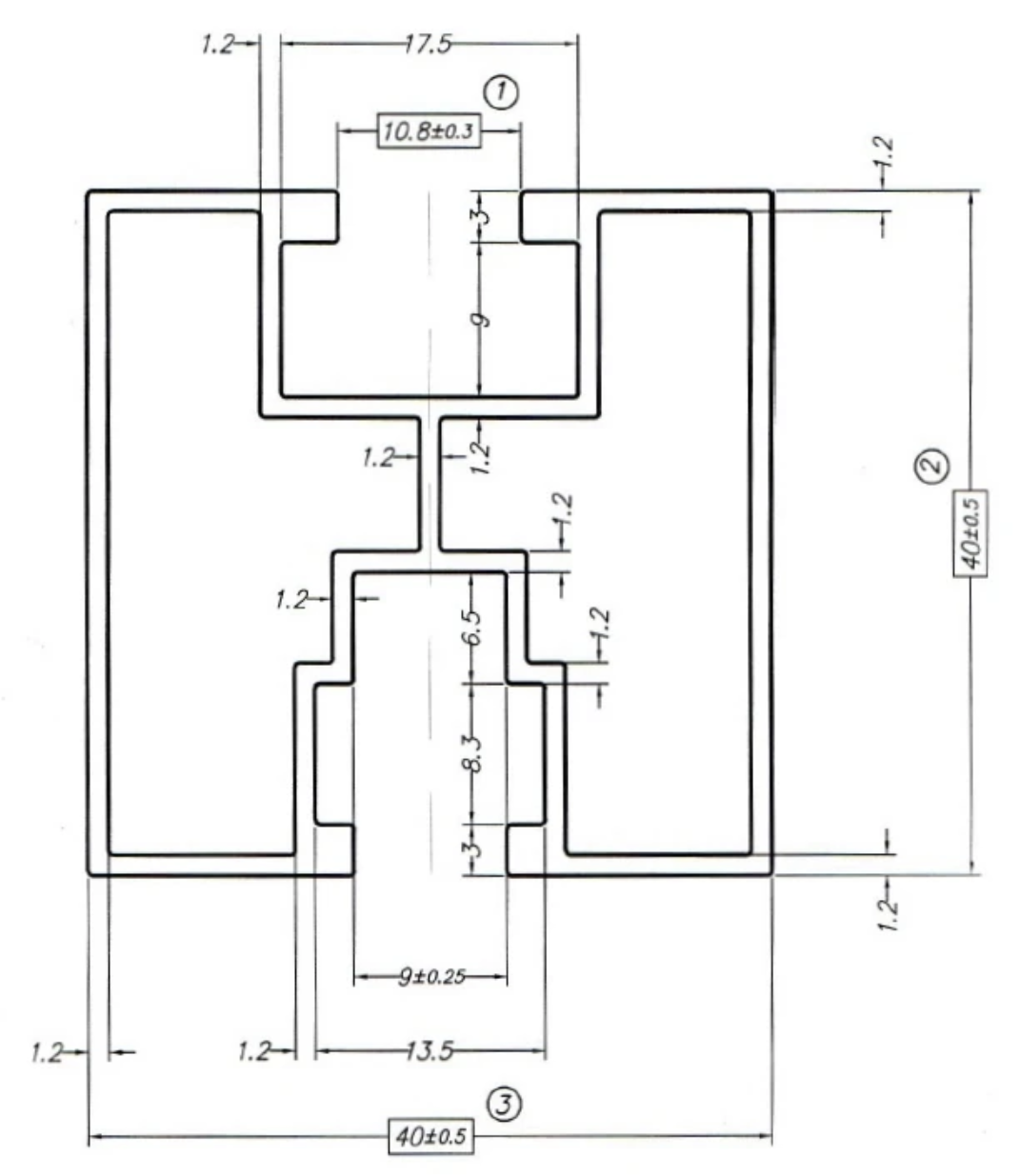

• Profile dimensions: 40×40 mm
• Length: 6600 mm
• Top channel: M8 compatible
• Bottom channel: M10 compatible

The profile is Schletter compatible and suitable for mounting with intermediate and end clamps, which are fixed in the upper channel of the rail. The lower channel of the rail allows mounting on adapters, roof hooks or triangles. The fastening is done with M10 hexagonal bolts and M10 flange nuts .

For extended installations, the profile can be extended with separately available connectors. Also available in black anodized finish for additional protection against environmental influences.
